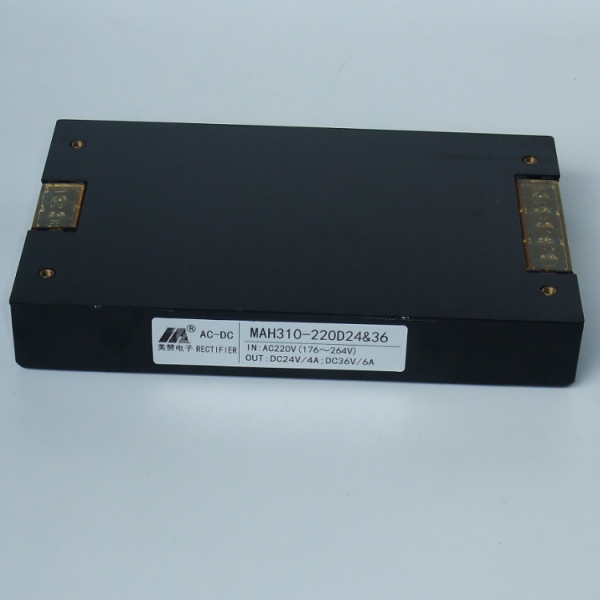

产品特性·输入浪涌电流抑制电路(Surge suppress circuit of input)·输出电压精度(Voltage Accuracy) ±1%·电压调整率(主路)(Line regulation) ±1% ·负载调整率(主路)(Load regulation) ±1% ·纹波噪声(Ripple&Noise,20MHz bandwidth) ±1%Vout 20MHZ示波
产品特性
·输入浪涌电流抑制电路(Surge suppress circuit of input)
·输出电压精度(Voltage Accuracy) ±1%
·电压调整率(主路)(Line regulation) ±1%
·负载调整率(主路)(Load regulation) ±1%
·纹波噪声(Ripple&Noise,20MHz bandwidth) ±1%Vout 20MHZ示波器
·符合UL1950,IEC950安全规程 Comply with UL 1950,IEC950 safety regulation
·电流限制点(Current Limit) 120%(Typ)
·隔离电阻(Isolation Resistance) 200MΩ
·隔离电压(Isolation Voltage):
输入/输出(Input/Output)>1500VAC/1min(漏电流<5mA)
输入/外壳(Input/case)>1500VAC/1min(漏电流<5mA)
输出/外壳(Output/Case)>500VDC/1min
·湿度(Relative humidity):Non-condensing 0% to 95%RH(无结露)
·效率(Efficiency) 83%(典型值)
·温度系数(Temperature Coefficient) ±0.03%/°C
·响应速度(Transient Response) 500 μS
·工作频率(Switching Frequency) 200KHz
·平均无故障工作时间(MTBF) 2X105Hrs
产品型号:
产品型号 Models | 输入电压(Vac) Input voltage range | 输出电压(Vdc) Output voltage | 输出电流(A) Output current | 纹波(mv) Ripple and noise | 效率(%) Efficiency | |
MAH200-220S5 | 220VAC(176~264VAC) | 5 | 40 | 70 | 84 | |
MAH300-220S12 | 12 | 25 | 120 | 85 | ||
MAH300-220S24 | 24 | 12.5 | 200 | 85 | ||
MAH300-220S48 | 48 | 6.25 | 400 | 86 | ||
双路
| MAH195-220D05&12 | 5/12 | 15/10 | 50/100 | 84 | |
MAH300-220D12&15 | 12/15 | 10/12 | 100/150 | 86 | ||
MAH300-220D24&48 | 24/48 | 5/3.75 | 200/400 | 86 | ||
MAH200-220D05&12 | 5/12 | 18/9.6 | 500/100 | 85 | ||
MAH200-220D12&24 | 12/24 | 8.33/4.16 | 100/200 | 86 | ||
MAH200-220D24&48 | 24/48 | 4.16/2.08 | 200/400 | 87 | ||
MAH220-220D12&24 | 12/24 | 10/4 | 100/200 | 87 | ||
MAH250-220D5&48 | 5/48 | 10/4 | 60/400 | 86 | ||
MAH200-220T5&12&24 | 5/12/24 | 5/5/5 | 60/120/200 | 86 | ||
MAH250-220T5&12&24 | 5/12/24 | 6/6/6 | 60/120/200 | 86 | ||
MAH230-220T5&12&-12 | 5/12/-12 | 10/10/5 | 60/120/120 | 86 |
● 仅列出典型型号,输入电压、输出电压、输出电流可根据客户要求订制。
Only typical models listed.if you need other model,please conform the power,input voltage and output voltage,then phone us.

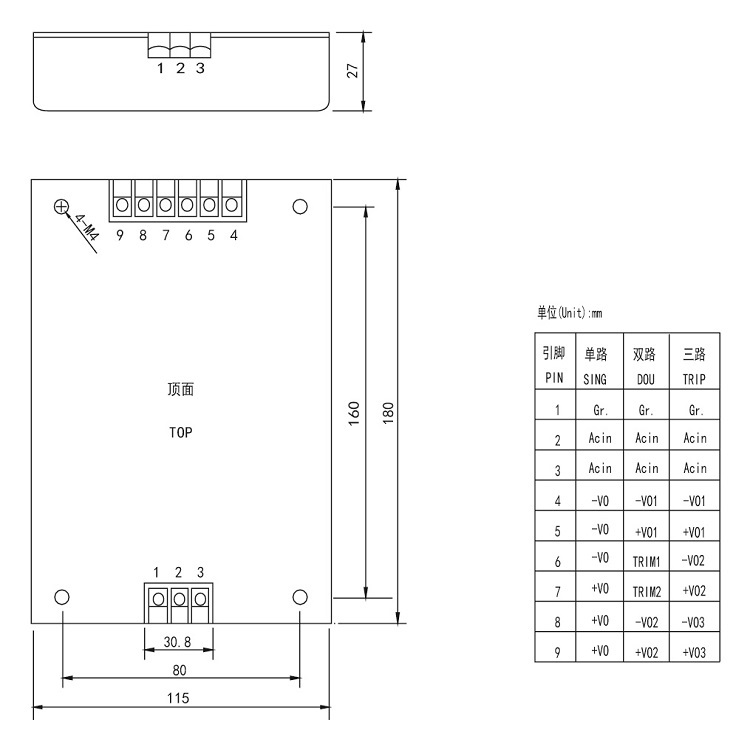

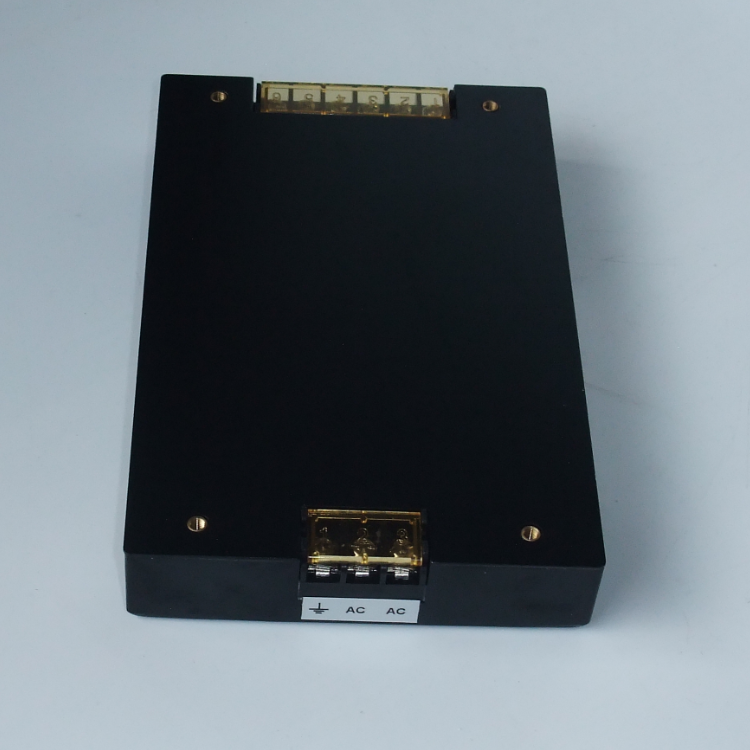

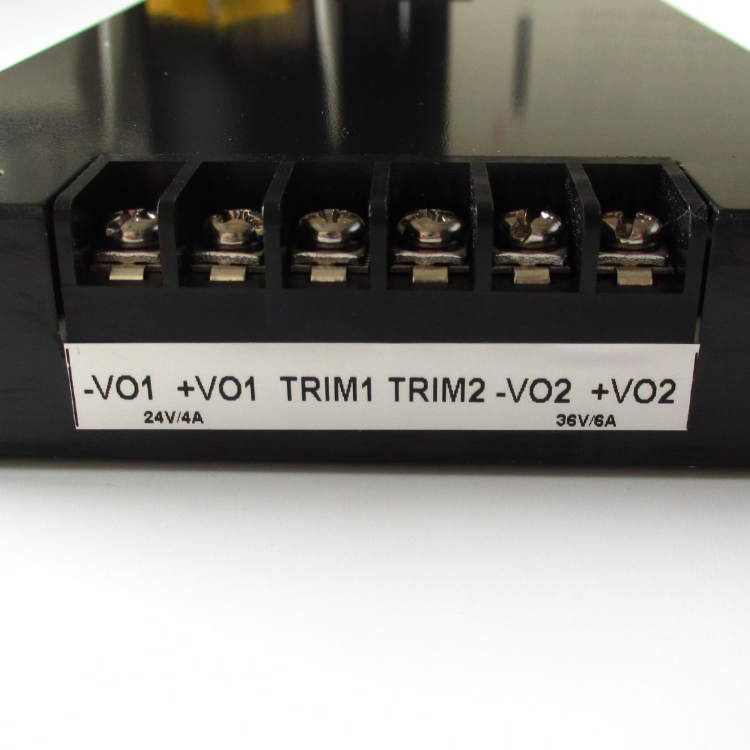

外型尺寸与引脚定义:180*115*27mm
