产品特性·输入浪涌电流抑制电路（Surge suppress circuit of input）·输出电压精度(Voltage Accuracy) ±1%·电压调整率（Line regulation） ±1% ·负载调整率（Load regulation） ±1% ·纹波噪声（Ripple&Noise,20MHz bandwidth） ±1%Vout 20MHZ示波器·符合UL19
产品特性
·输入浪涌电流抑制电路（Surge suppress circuit of input）
·输出电压精度(Voltage Accuracy) ±1%
·电压调整率（Line regulation） ±1%
·负载调整率（Load regulation） ±1%
·纹波噪声（Ripple&Noise,20MHz bandwidth） ±1%Vout 20MHZ示波器
·符合UL1950，IEC950安全规程 Comply with UL 1950,IEC950 safety regulation
·电流限制点（Current Limit）： 120%
·隔离电阻（Isolation Resistance） 200MΩ
·隔离电压（Isolation Voltage）:
输入/输出（Input/Output）＞1500VAC/1min(漏电流＜5mA)
输入/外壳（Input/case）＞1500VAC/1min(漏电流＜5mA)
输出/外壳（Output/Case）＞500VDC/1min
·湿度（Relative humidity）:Non-condensing 0% to 95%RH(无结露)
·效率（Efficiency） 87%（典型值）
·温度系数（Temperature Coefficient） ±0.03%/°C
·响应速度（Transient Response）: 500 μS
·工作频率（Switching Frequency） 200KHz
·平均无故障工作时间（MTBF） 2X105Hrs
产品型号：()
产品型号 Models | 输入电压(Vac) Input voltage range | 输出电压(Vdc) Output voltage | 输出电流(A) Output current | 纹波（mv） Ripple and noise | 效率（%） Efficiency | |
单路 | MAG150-220S5-C | 220 (176~264) | 5 | 30 | 50 | 85 |
MAG200-220S12-C | 12 | 16.7 | 120 | 87 | ||
MAG200-220S15-C | 15 | 13.3 | 120 | 87 | ||
MAG200-220S24-C | 24 | 8.33 | 200 | 87 | ||
MAG200-220S36-C | 36 | 5.6 | 300 | 88 | ||
MAG200-220S48-C | 48 | 4.17 | 400 | 88 | ||
MAG200-220S110-C | 110 | 1.82 | 700 | 89 | ||
MAG250-220S12-C | 12 | 20.8 | 120 | 87 | ||
MAG250-220S15-C | 15 | 16.7 | 120 | 87 | ||
MAG250-220S24-C | 24 | 10.42 | 200 | 87 | ||
MAG250-220S36-C | 36 | 6.95 | 300 | 88 | ||
MAG250-220S48-C | 48 | 5.21 | 400 | 88 | ||
MAG250-220S110-C | 110 | 2.72 | 700 | 89 | ||
MAG300-220S12-C | 12 | 20.8 | 100 | 87 | ||
MAG300-220S24-C | 24 | 10.41 | 200 | 87 | ||
MAG300-220S28-C | 28 | 7.14 | 200 | 87 | ||
MAG300-220S36-C | 36 | 8.3 | 300 | 88 | ||
MAG300-220S48-C | 48 | 6 | 400 | 88 | ||
MAG300-220S110-C | 110 | 2.73 | 700 | 89 | ||

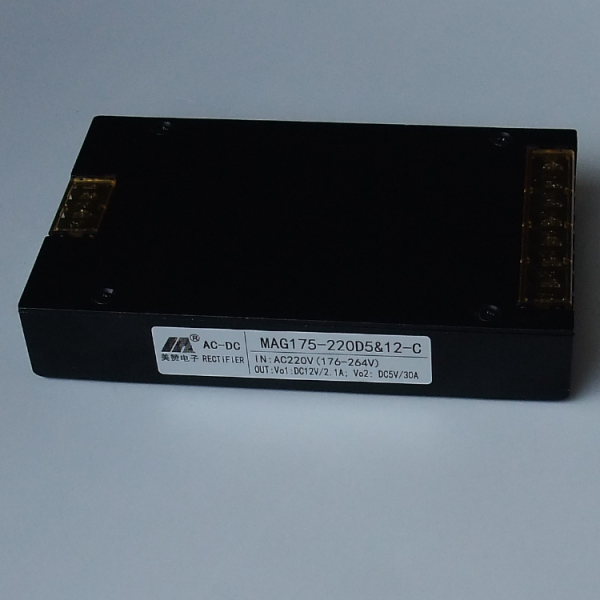

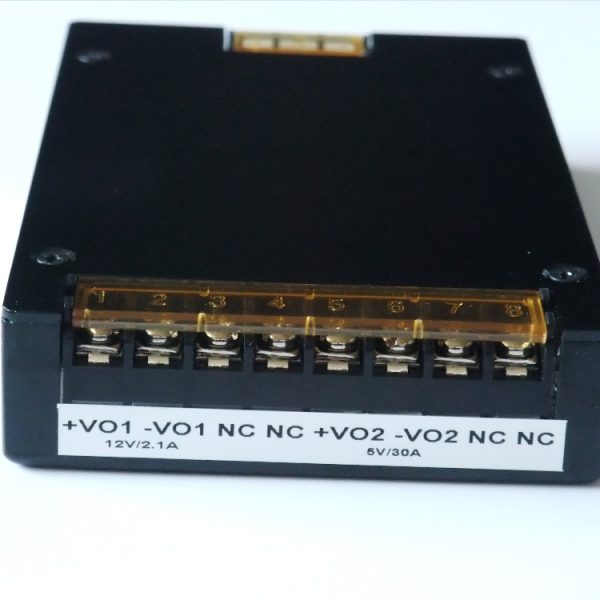

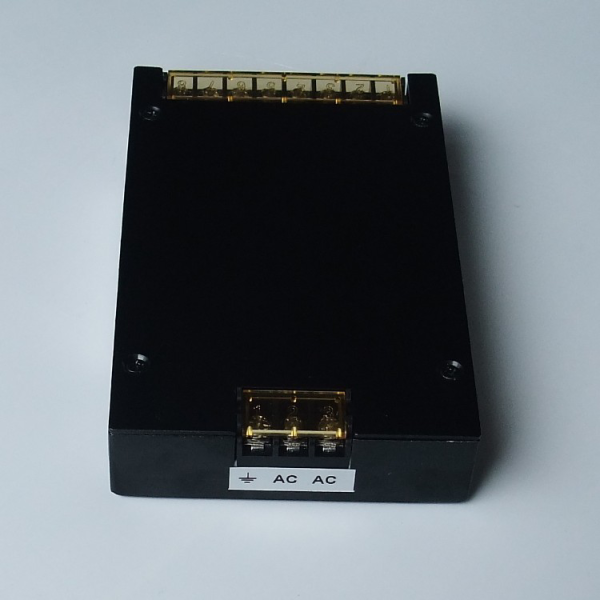

双路 | MAG175-220D5&12-C | 220 (176~264)
| 5/12 | 30/2.1 | 60/120 | 86 |
MAG175-220D5&24-C | 5/24 | 1/7 | 60/200 | 86 | ||
MAG165-220D24&24-C | 24/24 | 3.13/3.75 | 200/200 | 87 | ||
MAG180-220D24&36-C | 24/36 | 1.5/4 | 200/300 | 87 | ||
MAG200-220D12&24-C | 12/24 | 4.16/6.25 | 120/200 | 87 | ||
MAG200-220D12&-48-C | 12/-48 | 12.5/1.04 | 100/400 | 88 | ||
MAG225-220D12&15-C | 12/15 | 12.5/5 | 120/150 | 87 | ||
说明：仅列出典型型号，其他型号，请确定功率，输入电源及输出电压，致电我公司0571-88915820
Only typical models listed.if you need other model,please conform the power,input voltage and output voltage,then phone us.

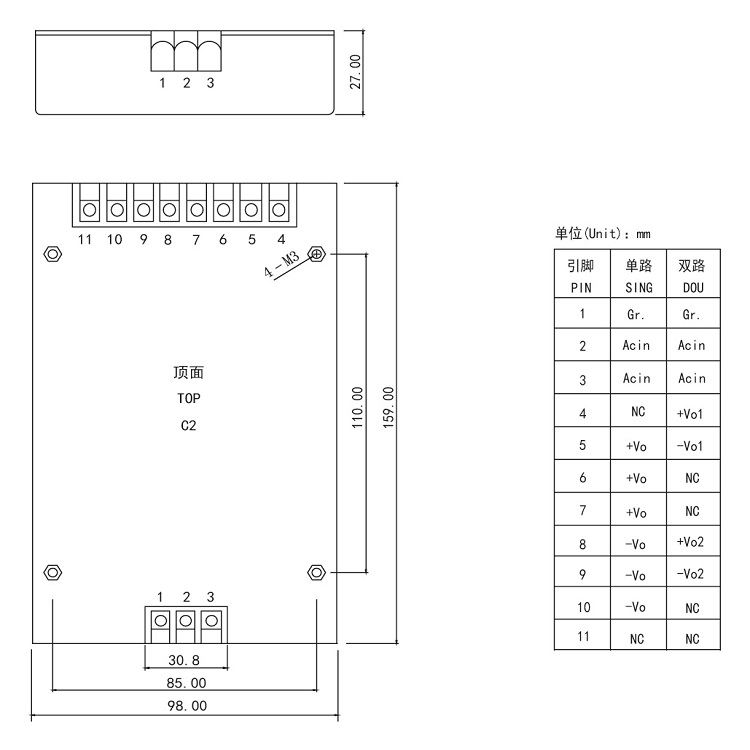

外型尺寸与引脚定义：159*98*26mm 管脚以实物为准
