产品特性· 输入浪涌电流抑制电路 (Surge suppress circuit of input)·输出电压精度(Voltage Accuracy) ±1%·电压调整率(Line regulation) ±1% ·负载调整率(Load regulation) ±1% ·纹波噪声(Ripple&Noise,20MHz bandwidth) ±1%Vout 20MHZ示波器·电流限制
产品特性
· 输入浪涌电流抑制电路
(Surge suppress circuit of input)
·输出电压精度(Voltage Accuracy) ±1%
·电压调整率(Line regulation) ±1%
·负载调整率(Load regulation) ±1%
·纹波噪声(Ripple&Noise,20MHz bandwidth) ±1%Vout 20MHZ示波器
·电流限制点(Current Limit): 110%(Typ)
·隔离电阻(Isolation Resistance) 200MΩ
·隔离电压(Isolation Voltage):
输入/输出(Input/Output)>1500VAC/1min(漏电流<5mA)
输入/外壳(Input/case)>1500VAC/1min(漏电流<5mA)
输出/外壳(Output/Case)>500VDC/1min
·湿度(Relative humidity):Non-condensing 0% to 95%RH(无结露)
·温度系数(Temperature Coefficient) ±0.01%/°C
·响应速度(Transient Response): 500 μS
·工作频率(Switching Frequency) 160-200KHz
·平均无故障工作时间(MTBF) 2X10P5PHrs
·防水等级 IP54
·环境特性(Environmental Characteristics)
工作壳温(Case Temperature) 工业品(Industry )-25- +85℃
军品I(Military I )-40- +85℃
军品II(Military II )-55- +85℃
储存温度(Storage Temperature)工业品(Industry )-45- +105℃
军品(Military )-55- +105℃
·热阻特性(Thermal Characteristics)
冷却方式(Cooling) 热阻(Thermal Resistance)
自然风冷(Breeze of Nature ) 0.56℃/W
0.5M/S 0.46℃/W
1M/S 0.38℃/W
1.5M/S 0.31℃/W
2M/S 0.25℃/W
产品型号:
产品型号 Models | 输入电压(Vac) Input voltage range | 输出电压(Vdc) Output voltage | 输出电流(A) Output current | 纹波(mv) Ripple and noise | 效率(%) Efficiency |
MAU1400-220S14 | 220(176-264) | 14VDC | 100 | 300 | 91 |
MAU1000-220S24 | 220(176-264) | 24VDC | 41.7 | 200 | 92 |
MAU1200-220S24 | 220(176-264) | 24VDC | 50 | 200 | 92 |
MAU1500-220S24 | 220(176-264) | 24VDC | 62.5 | 200 | 92 |
MAU1000-220S48 | 220(176-264) | 48VDC | 20.8 | 400 | 92 |
MAU1200-220S48 | 220(176-264) | 48VDC | 25 | 400 | 92 |
MAU1500-220S48 | 220(176-264) | 48VDC | 31.3 | 400 | 92 |
MAU1500-220S110 | 220(176-264) | 110VDC | 13.6 | 700 | 92 |
MAU2000-220S110 | 220(176-264) | 110VDC | 18.18 | 700 | 92 |
MAU1500-220S220 | 220(176-264) | 220VDC | 6.82 | 1200 | 92 |

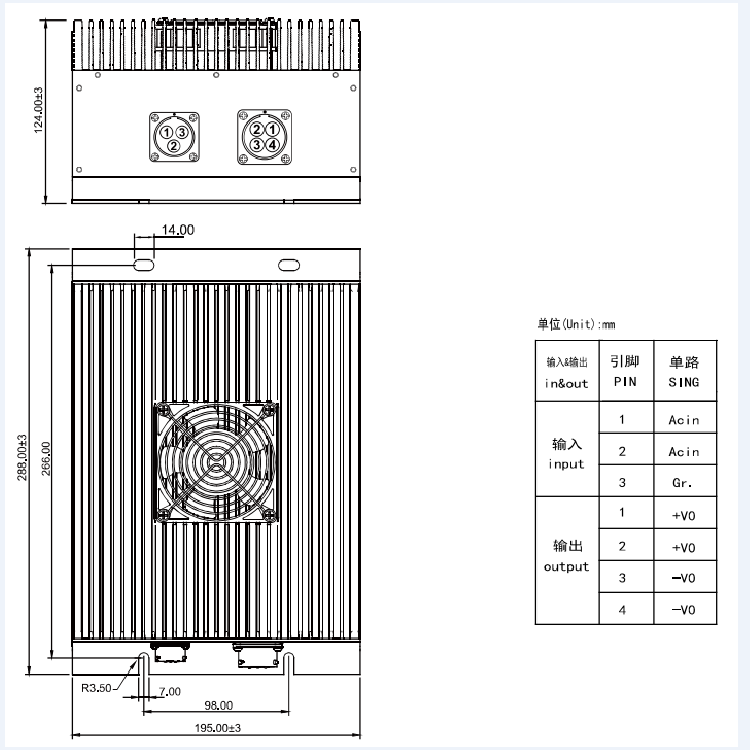

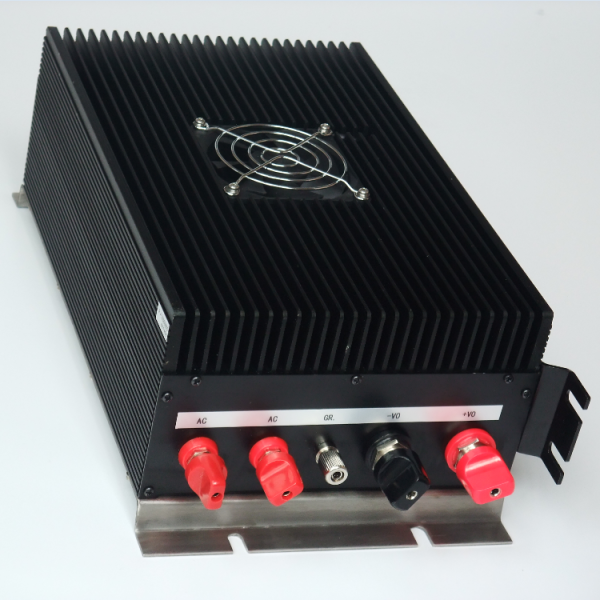

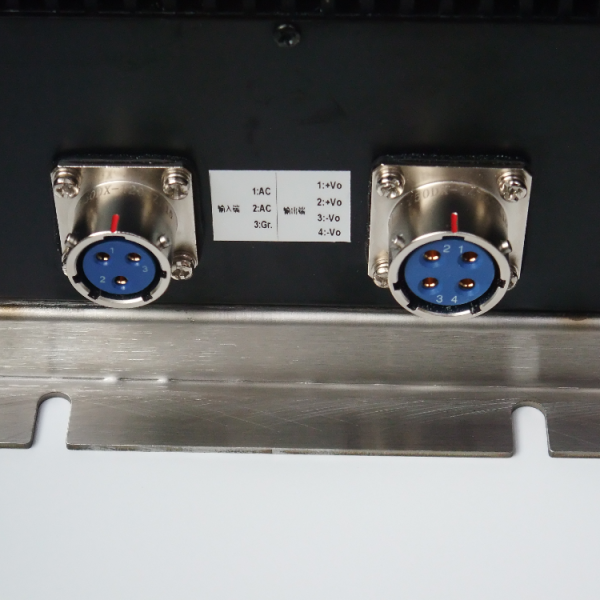

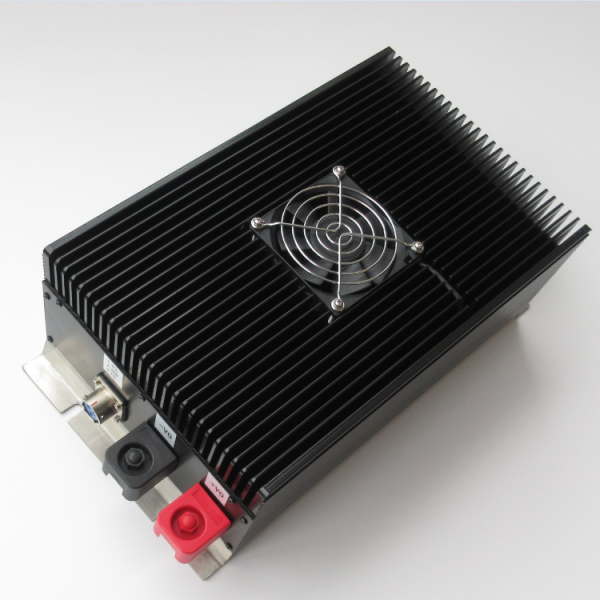

外型尺寸与引脚定义Mechanical dimension and pin definition:
尺寸:288*195*124mm
