型 号Model输 出DC out负载调整率Load regul纹波及噪声R﹠N转换效率EfficiencyMZA35-220S5(C)5v7A0.5%70mV78%MZA35-220S12(C)12v3A0.5%100 mV80%MZA35-220S24(C)24v1.5A0.5%150 mV80%MZA35-220S36(C)36v1A0.5%150 mV81%输入电压范围AC input v
型 号 Model | 输 出 DC out | 负载调整率 Load regul | 纹波及噪声 R﹠N | 转换效率 Efficiency | ||
MZA35-220S5(C) | 5v | 7A | 0.5% | 70mV | 78% | |
MZA35-220S12(C) | 12v | 3A | 0.5% | 100 mV | 80% | |
MZA35-220S24(C) | 24v | 1.5A | 0.5% | 150 mV | 80% | |
MZA35-220S36(C) | 36v | 1A | 0.5% | 150 mV | 81% | |
输入电压范围 AC input voltage range | 220V±15% | |||||
输入频率 Input frequency | 47～63Hz | |||||
浪涌电流 Inrush current | Cold start<30A/230VAC | |||||
输入漏电流 Input leakage current | <1mA/230VAC | |||||
输入电压调节率 Line regulation(full load) | ≤±0.5% | |||||
输出电压调节范围 Output voltage adjust range | ±5% | |||||
输出过载保护 Output overload protection | 105～150%,hiccup mode, auto recovery | |||||
绝缘耐压 Withstand voltage | I/P—O/P 1.5KVac 1min | |||||
I/P—F/G 1.5KVac 1min | ||||||
O/P—F/G 0.5KVac 1min | ||||||
上升时间 Rise time | 50ms@full load(typical) | |||||
保持时间 Hold up time | 20ms@full load(typical) | |||||
工作温度,湿度 Operating temperature ,Humidity | -10℃～+50℃,20～90%RH 无冷凝 (non condensing) | |||||
储存温度,湿度 Storage temperature ,Humidit | -30℃～+80℃ ,10～95%RH 无冷凝(non condensing) | |||||
安全标准 Safety standards | GB4943 EN60950 | |||||
EMC标准 EMC standards | GB9254 EN55022 | |||||
冷却方式 Cooling method | convection | |||||

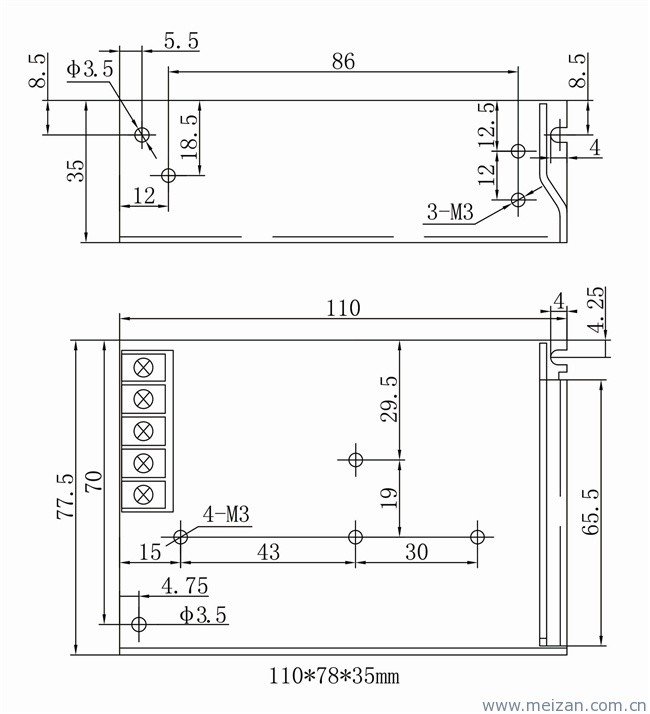

外形尺寸及引脚定义(单位mm) Mechanical drawing and pin definition
| ||||||
 | ||||||
