型 号Model输 出DC out负载调整率Load regul纹波及噪声R﹠N转换效率EfficiencyMZA75-220S5(D)5v15A0.5%80mV78%MZA75-220S12(D)12v6.25A0.5%120 mV82%MZA75-220S24(D)24v3.13A0.5%150 mV83%MZA75-220S36(D)36v2.08A0.5%150 mV83%输入电压范围AC
型 号 Model | 输 出 DC out | 负载调整率 Load regul | 纹波及噪声 R﹠N | 转换效率 Efficiency | ||
MZA75-220S5(D) | 5v | 15A | 0.5% | 80mV | 78% | |
MZA75-220S12(D) | 12v | 6.25A | 0.5% | 120 mV | 82% | |
MZA75-220S24(D) | 24v | 3.13A | 0.5% | 150 mV | 83% | |
MZA75-220S36(D) | 36v | 2.08A | 0.5% | 150 mV | 83% | |
输入电压范围 AC input voltage range | 220V±15% | |||||
输入频率 Input frequency | 47～63Hz | |||||
浪涌电流 Inrush current | Cold start<30A/230VAC | |||||
输入漏电流 Input leakage current | <1mA/230VAC | |||||
输入电压调节率 Line regulation(full load) | ≤±0.5% | |||||
输出电压调节范围 Output voltage adjust range | ±5% | |||||
输出过载保护 Output overload protection | 105～150%,hiccup mode, auto recovery | |||||
绝缘耐压 Withstand voltage | I/P—O/P 1.5KVac 1min | |||||
I/P—F/G 1.5KVac 1min | ||||||
O/P—F/G 0.5KVac 1min | ||||||
上升时间 Rise time | 50ms@full load(typical) | |||||
保持时间 Hold up time | 20ms@full load(typical) | |||||
工作温度,湿度 Operating temperature ,Humidity | -10℃～+50℃,20～90%RH 无冷凝 (non condensing) | |||||
储存温度,湿度 Storage temperature ,Humidit | -30℃～+80℃ ,10～95%RH 无冷凝(non condensing) | |||||
安全标准 Safety standards | GB4943 EN60950 | |||||
EMC标准 EMC standards | GB9254 EN55022 | |||||
冷却方式 Cooling method | convection | |||||

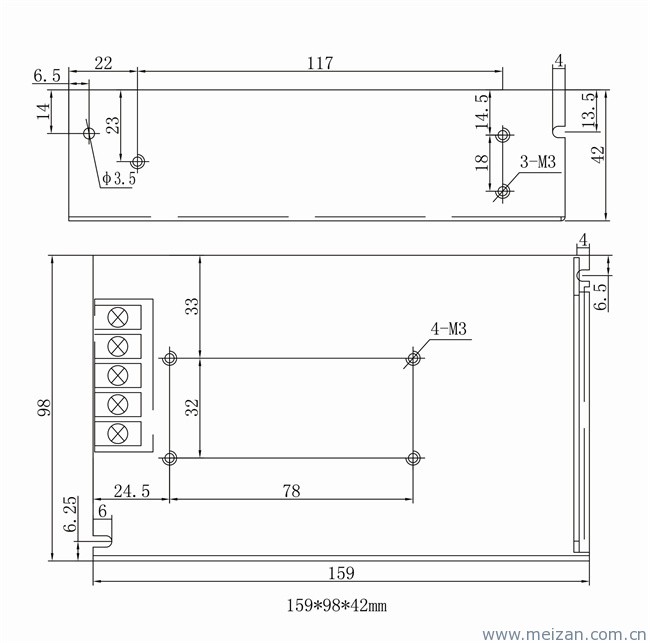

外形尺寸及引脚定义(单位mm) Mechanical drawing and pin definition | ||||||
 | ||||||
