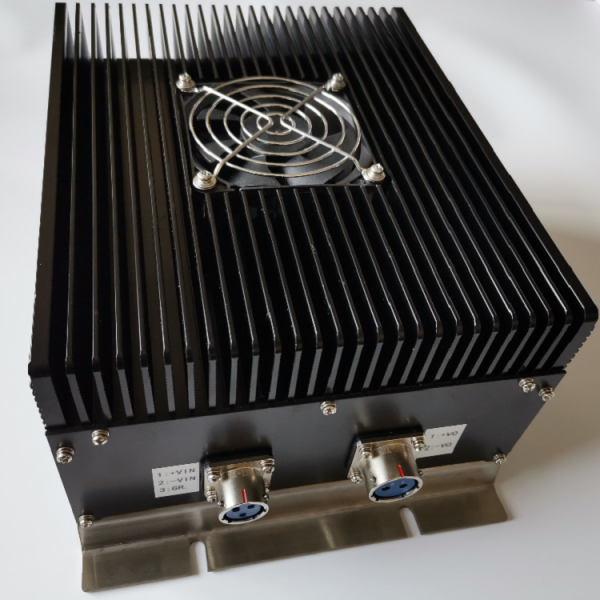

    DC-DC 电源模块 800-1500W MDU系列

    产品特性· 输入浪涌电流抑制电路(Surge suppress circuit of input)·输出电压精度(Voltage Accuracy) ±1%·电压调整率(Line regulation) ±1% ·负载调整率(Load regulation) ±1% ·纹波噪声(Ripple&Noise,20MHz bandwidth) ±1%Vout 20MHZ示波器·电流限制点

    全国热线

    0571-88915820
    在线咨询

    产品参数

    型号:
    MDU系列 800-1500W
    品牌:
    美赞电子
    输入电压:
    24V 48V 110V 300V 600V
    输出电压:
    24V 28V 36V 48V 110V
    输出电流:
    5-100A
    电压精度:
    ±1%
    电压调整率:
    ±1%
    负载调整率:
    ±1%
    电流限制点:
    ±1%
    工作频率:
    160-200KHZ
    保护特性:
    输入欠压保护,输出过压保护,输出过流保护,输出短路保护,过温保护
    功率:
    800-1500W

    产品特性

    · 输入浪涌电流抑制电路

     Surge suppress circuit of input

    ·输出电压精度(Voltage Accuracy)  ±1%

    ·电压调整率Line regulation   ±1%

    ·负载调整率Load regulation   ±1%

    ·纹波噪声Ripple&Noise,20MHz bandwidth ±1%Vout  20MHZ示波器

    ·电流限制点(Current Limit):    110%(Typ)

    ·隔离电阻(Isolation Resistance   200MΩ

    ·隔离电压(Isolation Voltage):

    输入/输出(Input/Output)>1500VDC/1min(漏电流<5mA)

                    输入/外壳(Input/case)>1500VDC/1min(漏电流<5mA)

                    输出/外壳(Output/Case)>500VDC/1min

    ·湿度(Relative humidity):Non-condensing  0% to 95%RH(无结露)

    ·温度系数Temperature Coefficient     ±0.01%/°C

    ·响应速度(Transient Response):    500 μS

    ·工作频率Switching Frequency   160-200KHz

    ·平均无故障工作时间(MTBF)     2X10P5PHrs

    ·防水等级  IP54

    ·环境特性(Environmental Characteristics)

             工作壳温(Case Temperature)  工业品(Industry )-25- +85℃

                                             军品I(Military I )-40- +85℃

                                             军品II(Military II )-55- +85℃

              储存温度(Storage Temperature)工业品(Industry )-45- +105℃

                                             军品(Military  )-55- +105℃

     ·热阻特性(Thermal Characteristics)

               冷却方式(Cooling)                热阻(Thermal Resistance)

                 自然风冷(Breeze of Nature )       0.56℃/W

                  0.5M/S                             0.46℃/W

                  1M/S                               0.38℃/W

                  1.5M/S                             0.31℃/W

                  2M/S                               0.25℃/W



    产品型号:

    产品型号

    Models

    输入电压(Vdc)

    Input voltage range

    输出电压(Vdc)

     Output voltage

    输出电流(A)

    Output current

    纹波(mv

    Ripple and noise

    效率(%

    Efficiency

    MDU1000-24S24

    1836

    24

    41.7

    200

    86

    MDU1200-24S24

    1836

    24

    50

    200

    86

    MDU1200-48S24

    36~72

    24

    50

    200

    86

    MDU1500-48S24

    36~72

    24

    62.5

    200

    86

    MDU1500-48S48

    36~72

    48

    31.3

    400

    86

    MDU1200-110S24

    70~140

    24

    50

    200

    86

    MDU1200-110S48

    70~140

    48

    25

    400

    86

    MDU1100-110S110

    70~140

    110

    10

    700

    89

    MDU1500-110S110

    70~140

    110

    13.6

    700

    89

    MDU1500-220S110

    150~300

    110

    13.6

    700

    89

    说明:仅列出典型型号,其他型号,请确定功率,输入电源及输出电压,致电我公司0571-88915820

    Only typical models listed.if you need other model,please conform the power,input voltage and output voltage,then phone us.

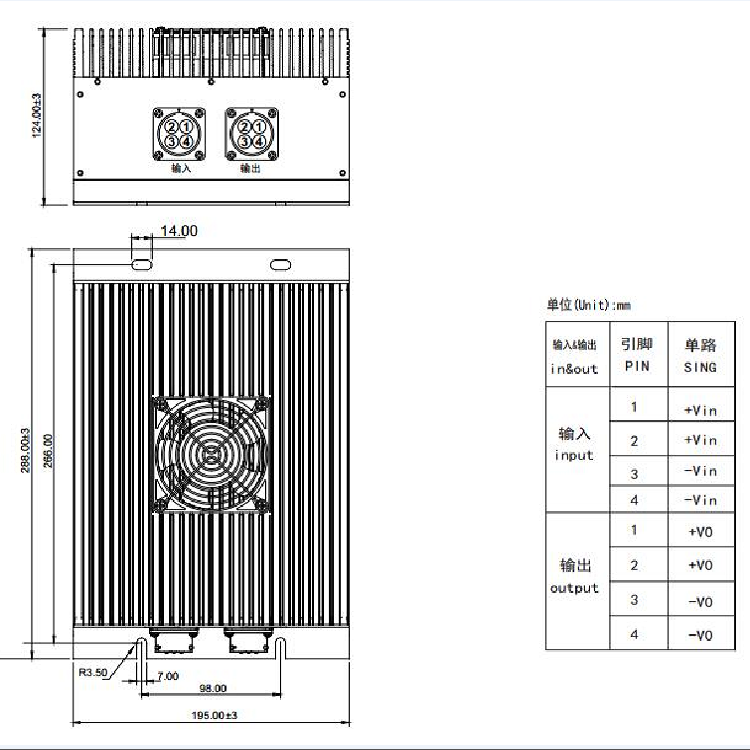

    外型尺寸与引脚定义Mechanical dimension and pin definition

    尺寸:288*195*124mm
